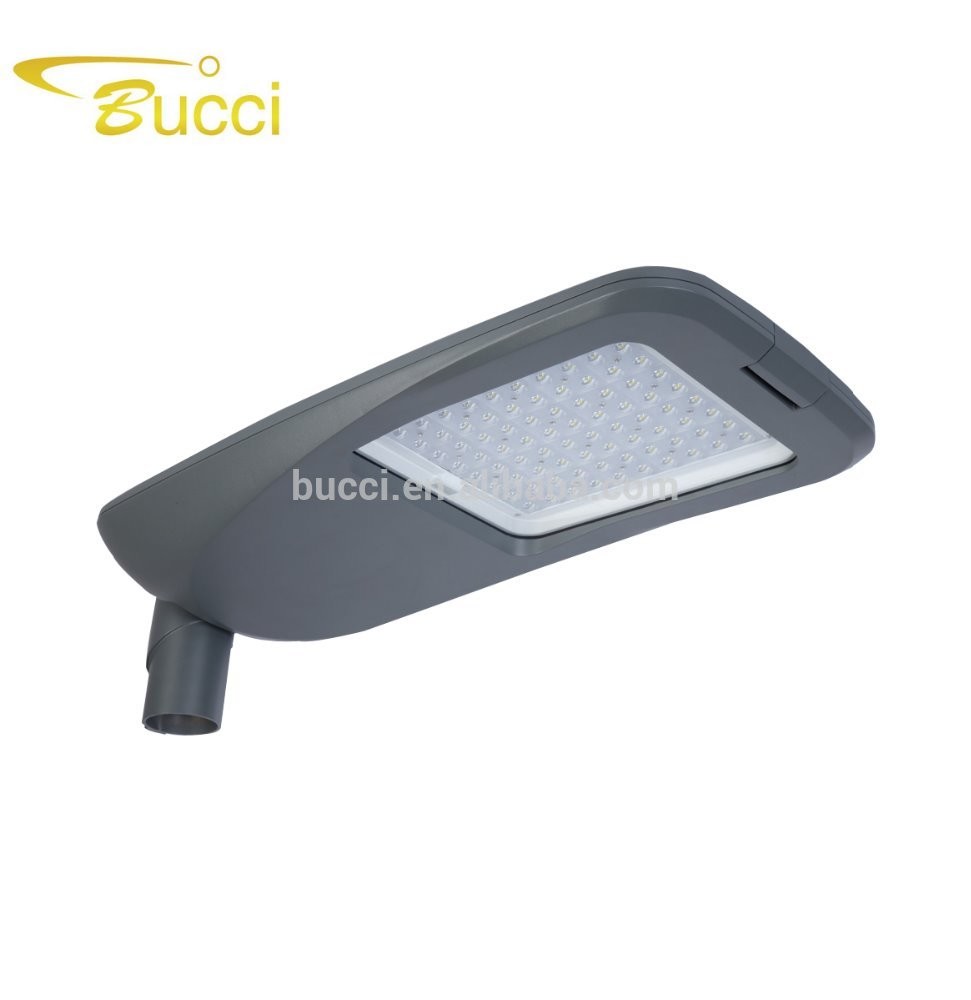

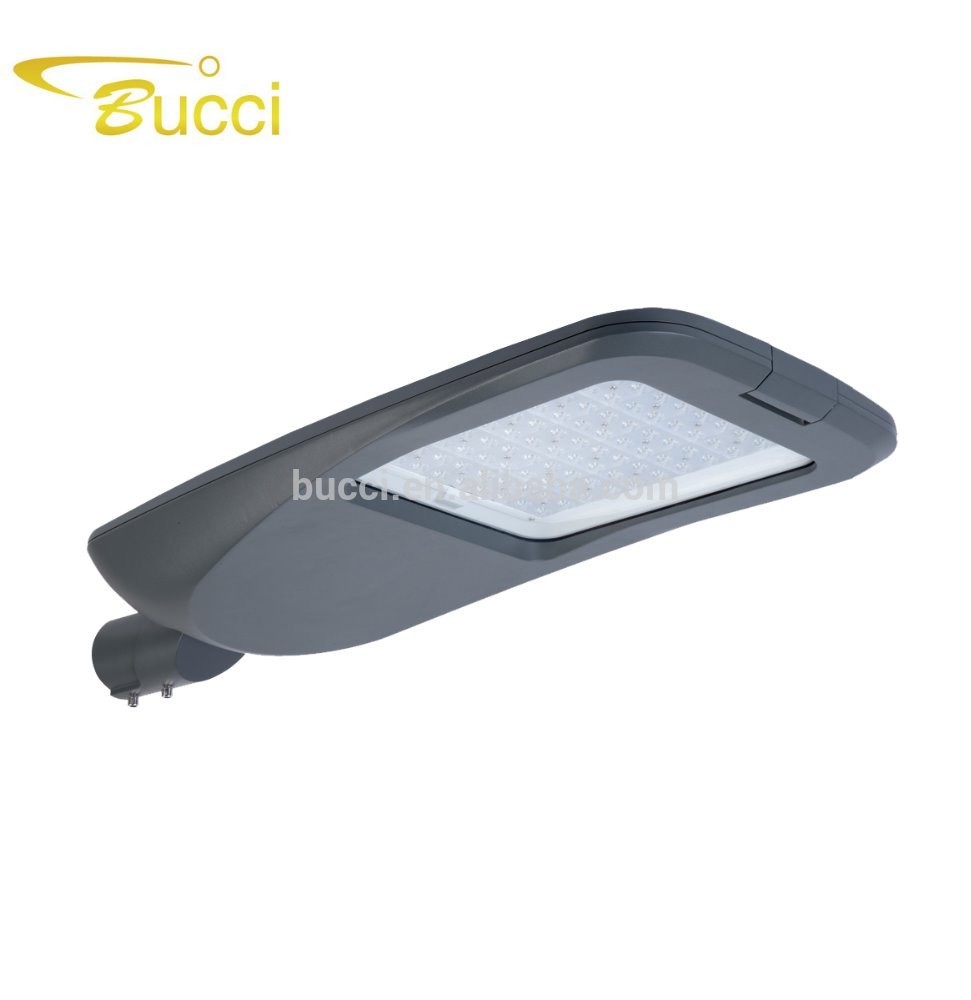

Name: Led Street Light
Brand: Shenzhen0701 DX-Well Technology Co., Ltd.
SKU: BUC-L1B-150
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Light Source: LED

Item Type: Street Lights

LED Light Source: Lumileds

Input Voltage(V): AC85-265V

Lamp Power(W): 150

Lamp Luminous Flux(lm): 16500

Lamp Luminous Efficiency(lm/w): 110

CRI (Ra>): 70

Color Temperature(CCT): Cool White

Working Temperature(℃): -40 - +80

Working Lifetime(Hour): 62000

Lamp Body Material: Aluminum

IP Rating: IP65

Warranty(Year): 5

Product Name: Led Street Light

Application: Urban Main Road,Express Way

Driver Brand: Xitanium

LED Qty: 200pcs

THD: <15%

PF: 0.9

Color: Grey

Basic Infomation

Place of Origin: Zhejiang, China (Mainland)

Brand Name: aodakx

Certification: CE, CQC, EMC, GS, LVD, RoHS, SAA, VDE

Model Number: BUC-L1B-150

Document: Product Brochure PDF

Payment & Shipping Terms

Gallery

Led Street Light

Product Description

Specification

Product Description

Different LED driver is optional.

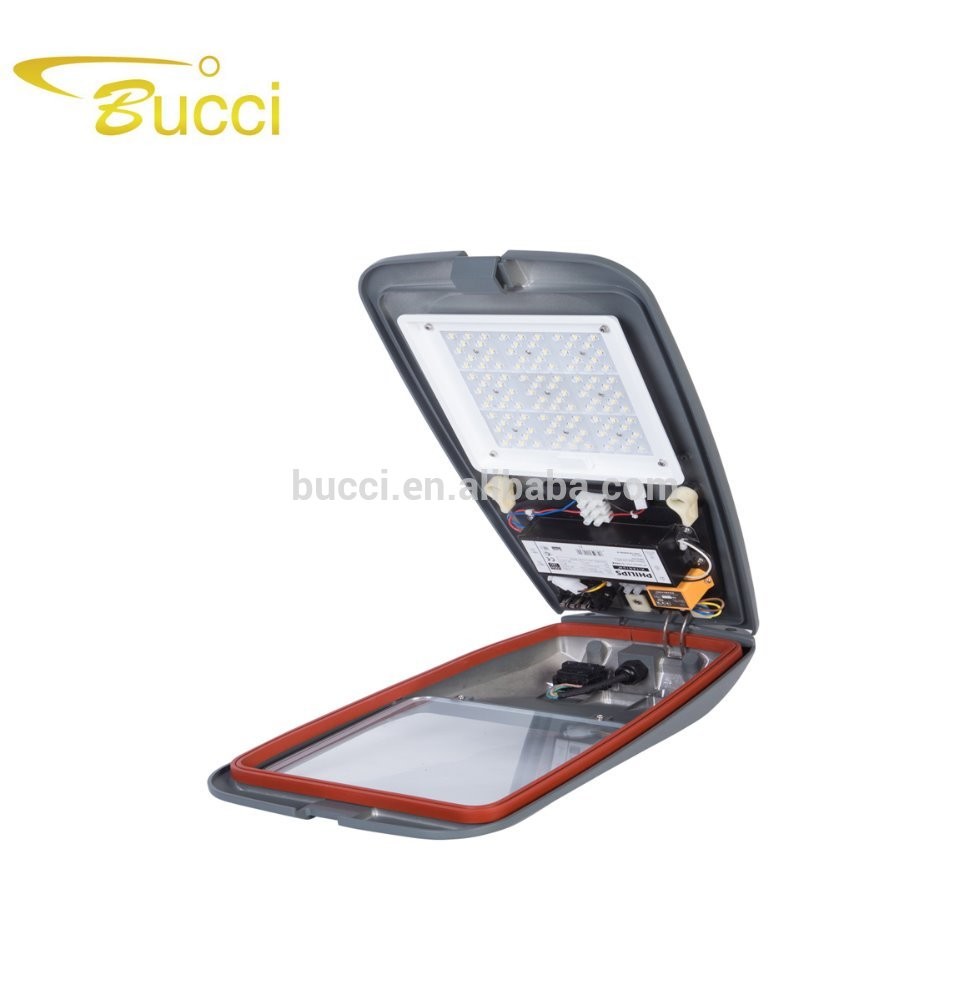

One button to open (Tool free opening).

Electrical disconnector (immediate, automatic disconnection of the power supply).

Galvanized steel spring pillar keeping the cover wide open to facilitate maintenance operations.

Plug design for the light source, power supply and external wires, easy for your installation and maintenance.

IP66 electronic Compartment.

Surge protection up to 10kV.

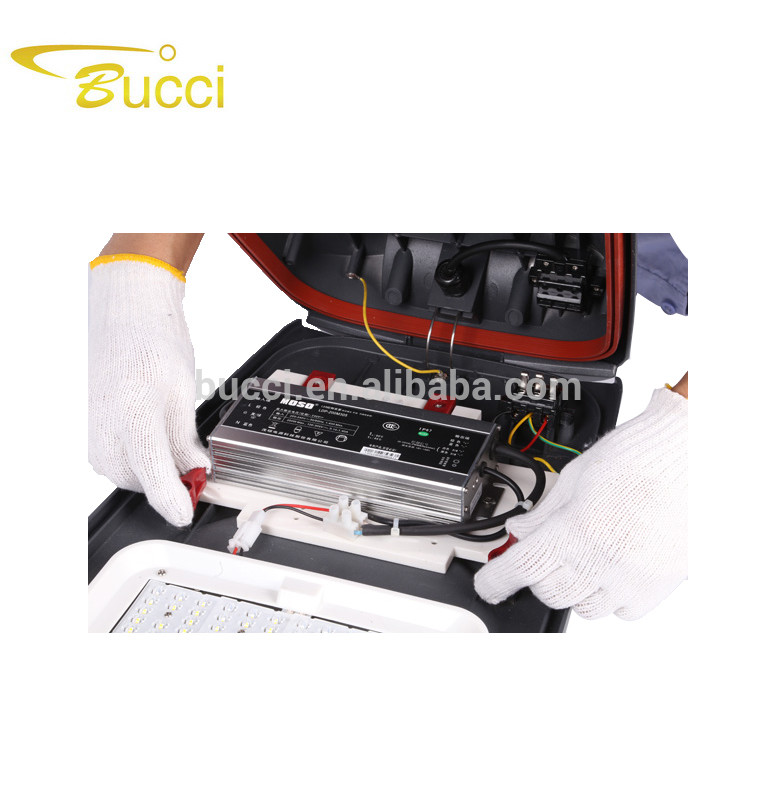

Removable driver plastic plate for ease of upgrade or maintenance.

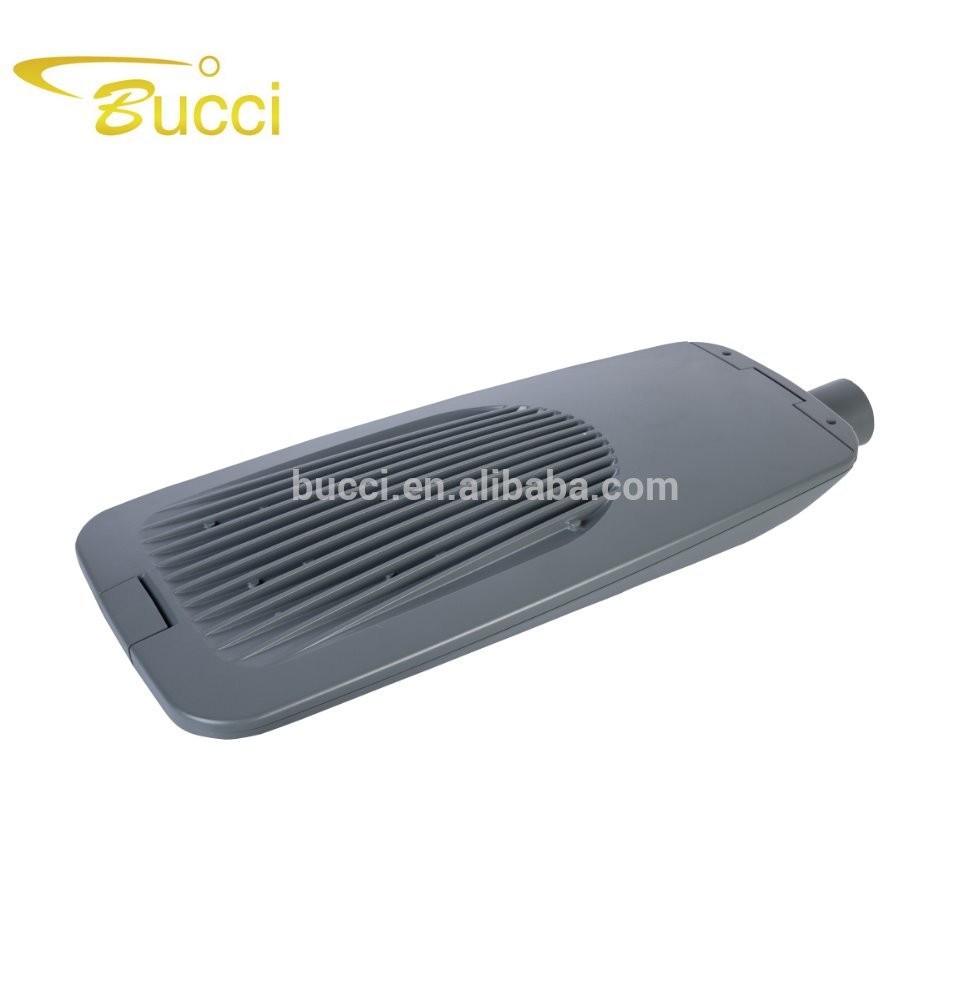

Large surface area for best possible heat dissipation.

Photocell sensor unit(option), according to environmental illumination to auto control turn on off, energy saving and environmental protection.

Sustainable and recyclable materials: aluminium and extra-clear flat glass protector.

IP66 optical compartment is sealed by an extra-clear glass protector for an optimal luminous flux.

Developed modular optical lens design for a precise light distribution according to the specific needs of the site to be lit, easily removed and replaced on-site to take advantage of future technological developments, specifically dedicated to offering photometric flexibility and performance.

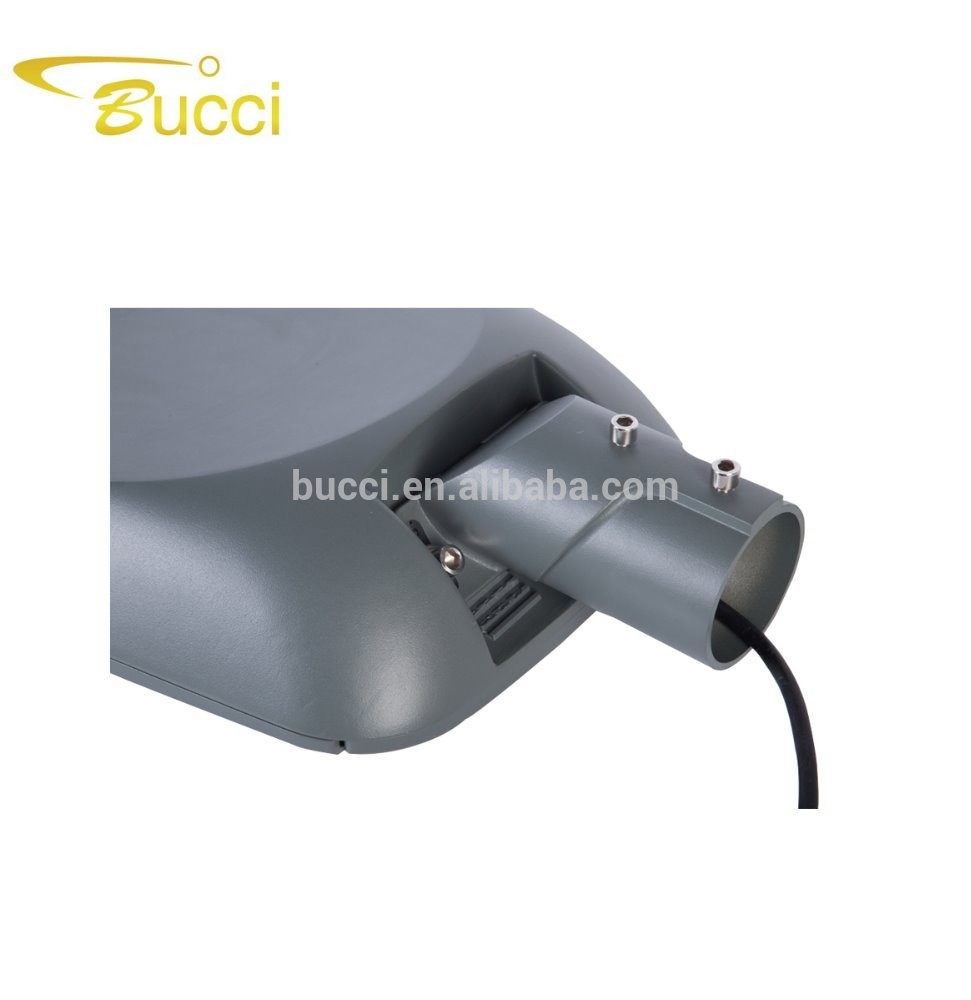

Side-entry or post-top mounting universal mounting piece allows precise.

Quality Control

Applications

Certifications

corduroy material

Get In Touch

test R1oom 1601-1605, Building B, JiaTai International Building, No.41 East Fourth Ring Road, Chaoyang District, Beijing, China

jeffreyth@slurrypump.com

17321496453

About

Company Profile Factory Tour Quality Control Contact Us

Products

Corduroy fabric Stretch Corduroy Fabric Jacquard Upholstery Fabric All Categories

Mail Us

Let us know your requirement. We will connect best products with you.

Product Name:	Led Street Light
Product Code:	BUC-L1B-150	Life Span:	62000hours
Rated Voltage:	AC85-265V,50/60HZ	Rated Power:	150W
Luminous Efficiency:	110lm/w	CRI Ra>	70
CCT:	3000-6500K	Bean Angle:	150°*75°
Chip Qty:	200pcs	Chip Brand:	Lumileds
Chip Size:	3030 2D	Driver Brand:	Xitanium
Power Factor:	0.9	Electrical Class:	Ⅰ
IP Rate:	IP66	IK Rate:	IK09
Material:	Aluminum	Warranty:	5years
Product Spec.:	780340133mm	Packing Size:	850410175mm
Gross Weight:	11.1kgs	Net Weight:	8.8kgs
Price Terms:	FOBNINGBO	MOQ:	1000pcs
Optional Function:	10kV Surge Protection Device,Photocell Sensor
